ISOLATOR ADH1-100

ISOLATOR ADH1-100

Application


The product is mainly used in the circuits of AC 50H z/60Hz, rated voltage up to 400V and rated current up to 1 00A. It is applied to switch on and off  the circuit of  the terminal boxes or control motors, electrical apparatus, and lighting systems. It is in conformity with I EC 60947-3 standard.



Main Technical Data

Rated current

(A)

Pole

Voltage

(V)

Lcw

 (A)

Lcm

(A)

Breaking capacity

Electric Life

(Times)

Mechanical Life

(Times)



20A

32A

40A

63A

80A

100A



1

230/415V

12le

20le

3le,1.05Ue,

COSφ0.65

3,000

10,000

2

230/415V

12le

20le

3le,1.05Ue,

COSφ0.65

3,000

10,000

3

230/415V

12le

20le

3le,1.05Ue,

COSφ0.65

3,000

10,000

4

30/415V

12le

20le

3le,1.05Ue,

COSφ0.65

3,000

10,000

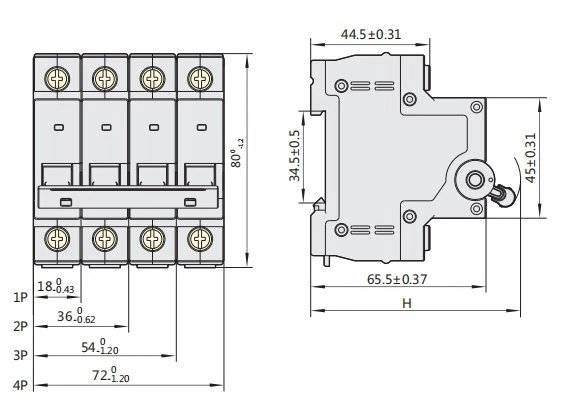

Dimension
