EL-ADL9-40
Earth Leakage

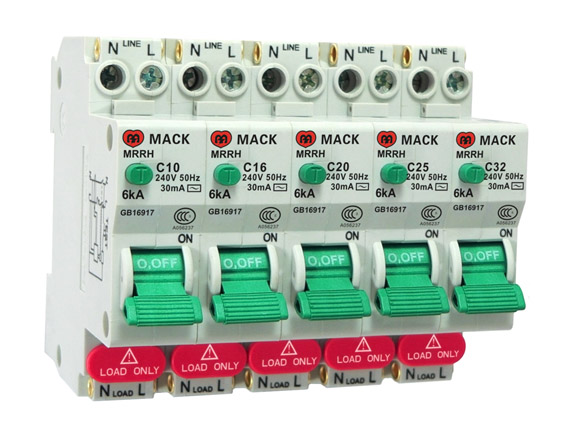

Construction and Feature
1. Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolator.
2. Operating machanism adopt double contact with DPN form, N pole opening first, then breaking.
3. Leakage protection adopt electronic type integrated circuit, Contact ON/OFF state display.
4. It complies with standard of IEC60947/ VC8036, IEC61009/ VC8035
Main Technical Data
NO. of pole | 1P+N(18mm) |
Rated of Voltage | 240V |
Tripping Curve | B,C,D |
Rated Current | 6,10,16,25,32A,40A |
Mechanical and Electrical life | (O-C) not less than 4000 operations |
Protective Grade | IP20 |
Breaking Capacity | 4.5kA |

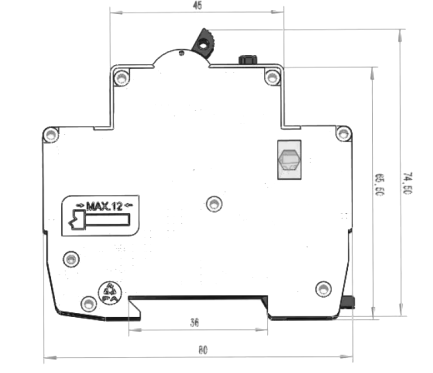

Dimensions(mm)

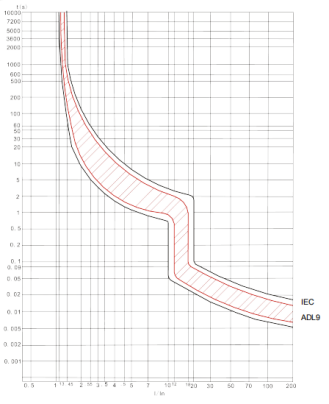

Characteristic Curve
